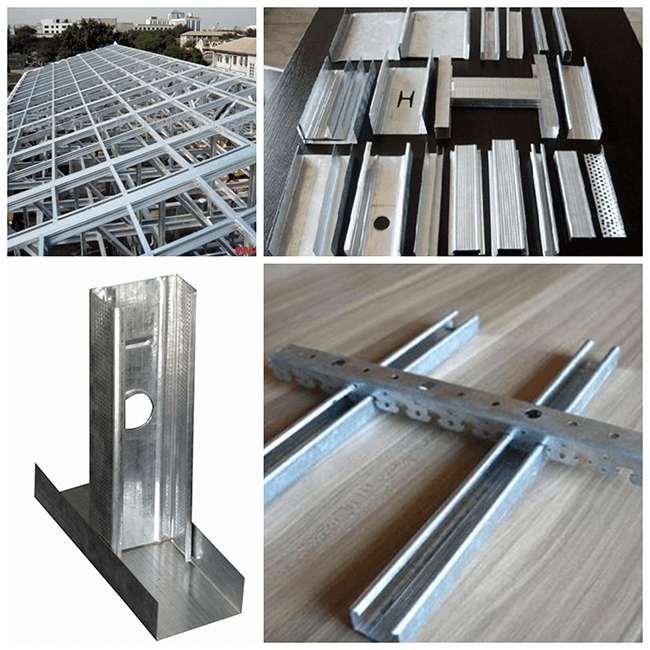

Stud tracks are widely used in luxury villas, high-end hotels, office buildings and shopping malls. It is sturdy, durable, and highly resistant to corrosion. It is also popular with construction units and construction units in terms of price, reducing the quality concerns of the project during construction, and frequent maintenance due to material quality problems during use. Greatly reduce the construction cost and various troubles caused by maintenance during use.
-
Working Flow: Decoiler -- Feeding -- Straighten -- Punching --Roll forming -- Shear -- Output
description1
Zipper closure
1/4 zip athletic pullovers for men. Stretchy, lightweight, fast-drying
fabric for superior performance.
REGULAR FIT - US standard sizes. An athletic fit that sits close to the body
for a wide range of motion, designed for optimal performance and all day
comfort.
FEATURES - Quarter zip closure;Thumbholes on long sleeves to keep them in
place during workout
Product Descriptions
Version to design
Product Parameters
|
|
Items |
Specifications |
|
Material of coil |
Thickness |
0.3-1mm galvanized steel |
|
De-coiler |
Weight |
3 ton manual |
|
Forming system |
Rolling Speed |
0-15m/min |
|
Embossing |
At sides |
|
|
Roller Stations |
About 13 stations forming |
|
|
Roller Material |
Cr40 Steel with quenching |
|
|
Shaft Material |
45# Steel Diameter 60mm shaft |
|
|
Motor Power |
5.5 kw |
|
|
Hydraulic cutting Power |
3 kw |
|
|
Cutting system |
Material of cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blade |
3 pieces of cutting blade |
|
|
Electrical control system |
Electric Source |
380V, 50HZ,3 phase |
|
Control System |
PLC |
|
|
Weight |
About 3 tons |
|
|
Way Of Drive |
1 inch single chain |
|
|
Size of machine |
Length 5500mm* Width 600mm*Height 800m |
MACHINE INTRODUCTION
Main Components
-
3 ton passive de-coiler
1 set
Main roll forming machine
1 set
Punching device
1 set
Cutting device
2 sets
PLC Control box
1 unit
Hydraulic station
1 unit
Out table
2 units
Safety cover
1 unit(Optional)
-
