Product Descriptions
Automaitc electric factory using cabinet frame roll forming machine with welding for electric cabinet rack, electronic box pole, metal case frame which using in switchgear system, low voltage panel building, control cabinetelectrical instruments etc.
Working Flow：
Uncoiler -- Servo Feeding -- punching -- Guide device -- roll forming machine -- Roller welding -- shear device (including knife) -- finished product rack
Profiles pictures
Product Parameters
|
Main motor power |
11kw*2pcs |
|
Drive |
Chain |
|
Main shaft diam |
75mm( material: 45#forge steel and quenched ) |
|
Roller material |
Gcr15 bearing steel forge steel and quench treatment hardness 58-62, chrome coated 0.05mm |
|
Roll station |
40 groups |
|
Raw material |
0.8~2.0mm |
|
Working speed |
10m--15m/min(Exclude cutting time) |
|
Length Tolerance |
±1mm |
|
Weight of machine |
about 6ton |
|
Size of machine |
About 9000×1000×1500mm L x W x H |
|
Color of machine |
depend on customer |
|
Coder |
Omron |
|
Control |
PLC Panasonic, made in Japan. 380V 50HZ |
|
Computer operating panel |
touching screen |
|
Punching |
Hydraulic punching before roll forming |
|
Cutting |
Hydraulic cutting after roll forming( Cutting when reach the set length ) |
|
Hydraulic power |
18.5KW |
|
Blade material |
Cr12,quenched 58°-62° |
|
Working pressure |
20mpa |
|
Cutting tolerance |
+/- 1.5mm |
Main Components
|
No. |
Machine name |
QTY |
REMARK |
|
1 |
Uncoiler |
1 |
|
|
2 |
Servo Feeder |
1 |
|
|
3 |
Hydraulic machine / Punch machine |
1 |
With mould |
|
4 |
Guide device |
1 |
|
|
5 |
Forming machine |
1 |
|
|
6 |
Roller welding |
1 |
|
|
7 |
Follow Shear |
1 |
Including knife |
|
8 |
Collect rack |
1 |
|
|
9 |
Control system |
1 |
|
|
10 |
Box bending machine |
1 |
With mould |

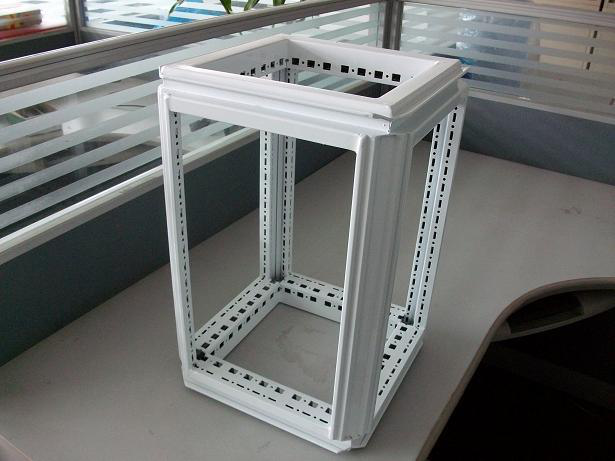

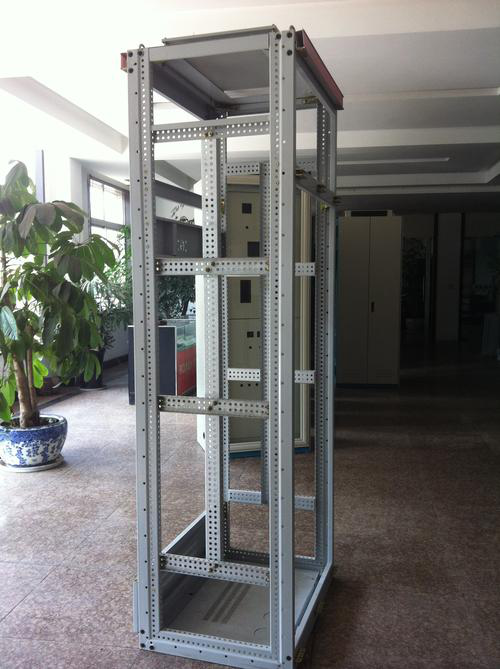

Application Pictures
Electrical cabinet frame. It is a column. The beam is provided with at least one sealing groove. The angular connector is designed in a three-dimensional coordinate shape. The groove is matched with the column and the sealing groove on the beam. The advantages are increased structural strength and improved cabinet protection. , Thereby improving the replacement of electrical products and the safety of operators.
Electrical cabinet frame. It is a column. The beam is provided with at least one sealing groove. The angular connector is designed in a three-dimensional coordinate shape. The groove is matched with the column and the sealing groove on the beam. The advantages are increased structural strength and improved cabinet protection. , Thereby improving the replacement of electrical products and the safety of operators.
