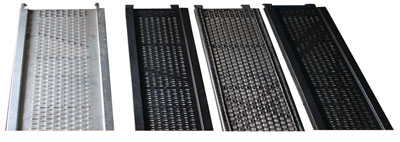

Scaffolding is a working platform set up to ensure the smooth progress of each construction process. Scaffolding has the characteristics of multi-function, high efficiency, versatility, large bearing capacity, safe and reliable, easy to manage and easy to transport. It is commonly used in various construction sites to ensure the safety of construction workers.
|
Items |
Specifications |
|
Max Material Thickness |
2-4.0mm |
|
Hydraulic Uncoiler |
5T |
|
Hydraulic Power |
15 kw |
|
Punching |
Hydraulic punching / |
|
Mould Material |
Cr12Mov |
|
Rolling Speed |
6-8m/min |
|
Roller Stations |
18 stations |
|
Roller Material |
Gcr15, quench treatment hardness 55-60 |
|
Shaft |
45#steel |
|
Shaft diameter |
95mm |
|
Main Motor Power |
55 kw |
|
Transmission |
Gearbox |
|
Hydraulic Power |
15 kw |
|
Blade Material |
Cr12Mov |
|
Tolerance |
+-1.5mm |
|
Electric Source |
380V, 50HZ, |
|
PLC Control System |
Panasonic |
|

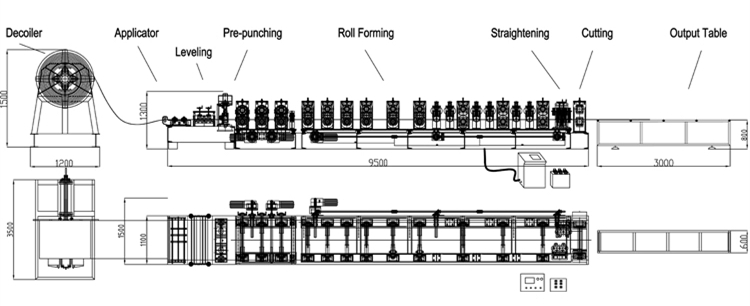

No. |
Name |
Qty |
|
1 |
Hydraulic uncoiler |
1 |
|
2 |
Hydraulic Punching |
1 |
|
3 |
Main Roll Forming Machine |
1 |
|
4 |
PLC Control Box |
1 |
|
5 |
Hydraulic Pump Station |
1 |
|
6 |
Output Table |
2 |

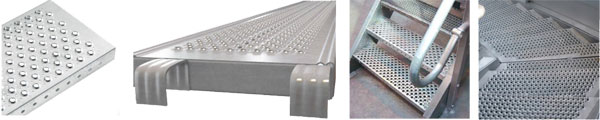

In the working areas of construction industry, for the safety and stability as a non-slip scaffold platform and ladder.
In all ladder systems in industrial facilities, for hygiene, ergonomics, slip and durability.
Portable camp areas on work platforms, stairs, walkways, driveways.
All areas which requires portability, lightness and safety.
In work areas with oily, dirty, dusty and slippery floors.
In marine industrial facilities, for resistance to water and slipping.
