The steel warehouse has a good storage effect, and the large steel warehouse is very tight. It is basically vacuum storage. This storage method greatly prolongs the storage time. The storage of traditional warehouses cannot be compared with it. Moreover, the investment in steel warehouses is lower than that of traditional concrete warehouses Save over 30%.
|
Items |
Specifications |
|
Suitable material |
PPGI/Aluminium sheet/galvanized sheet/various sheet plates |
|
Thickness of coil sheet |
0.2-0.8mm |
|
Coil width |
925mm |
|
Effective width |
762mm |
|
Material of main frame |
350H steel |
|
Diameter of shaft |
70mm, high grade 45# steel |
|
Roller |
High grade 45# steel, quenched and tempered treatment |
|
Thickness of middle plate |
16mm, 45# steel plate |
|
Forming station |
18 rows |
|
Drive type |
By chain(1.0 inch), link bearing model 6210 |
|
Sidewall connection bar |
25mm, zinc plated |
|
Forming speed |
About 10-15m/min |
|
Control System |
PLC |
|
Material of razor blades |
Cr 12, quenching 58-62℃ |
|

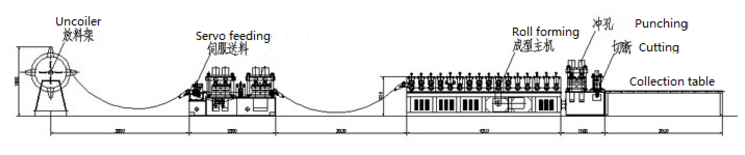

5 ton decoiler |
1 set |
|
Main roll forming machine |
1 set |
|
Cutting device |
2 sets |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Out table |
2 units |
|
Safety cover |
1 unit(Optional) |

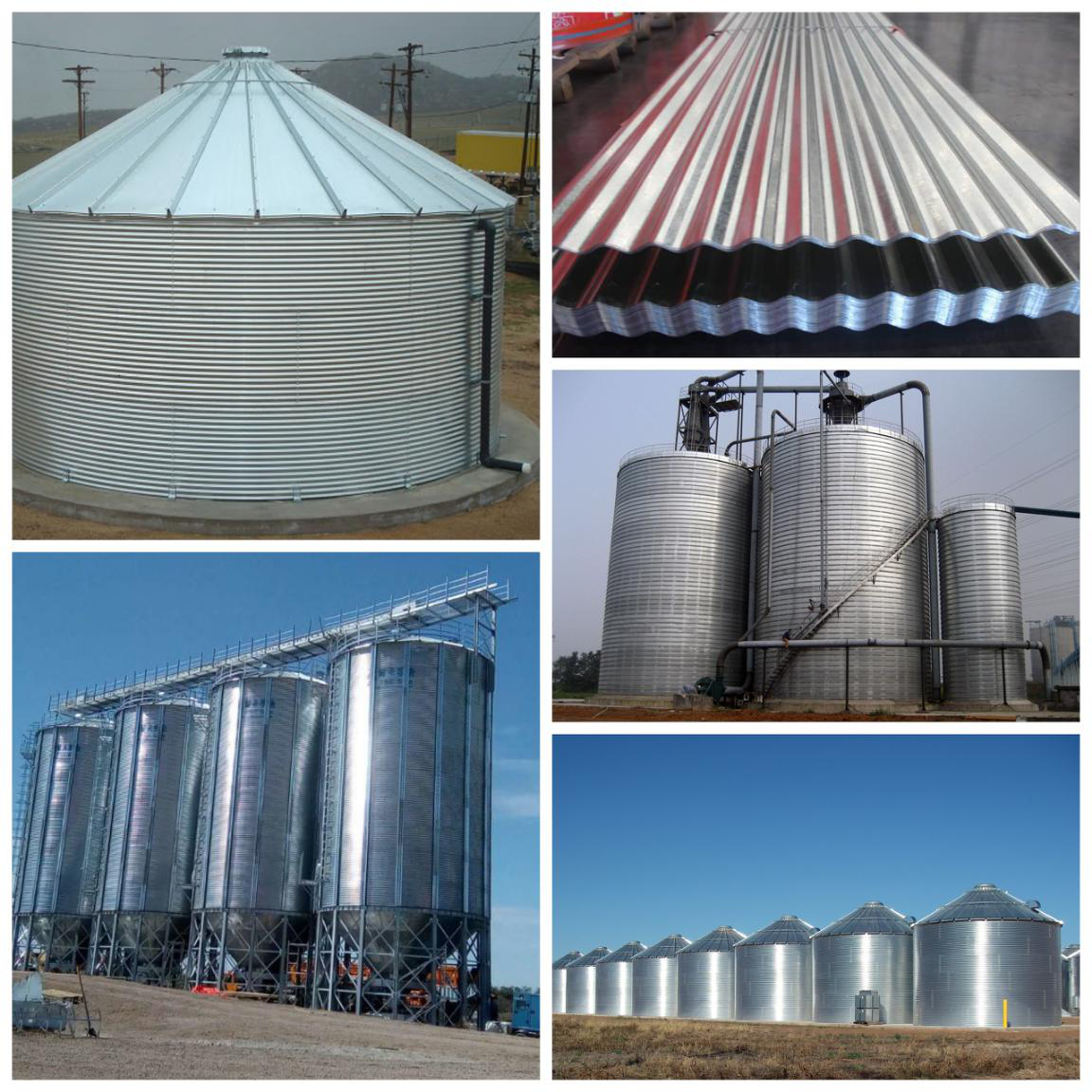

A silo is a structure for storing bulk materials. Silos are used in agriculture to store grain or fermented feed known as silage. Silos are more commonly used for bulk storage of grain, coal, cement, carbon black, woodchips, food products and sawdust. Three types of silos are in widespread use today: tower silos, bunker silos, and bag silos.
Steel silo has the function of moistureproof, insects and rodents prevention and convenient in and out of grains. Air tightness is pretty good, so it is suitable for use of pesticides. The steel silo is made of high quality galvanized sheet which can be use for 30 years and never rust. Grain silos are suitable for grain depot, feed mill, oil mill plant and farm use, etc.
Steel silos can realize environmental protection storage: Each steel silo is equipped with a dust collector, which is mainly used to collect dust generated when materials are stored in the warehouse. The dust collector reduces the diffusion of dust and plays a good role in protecting the environment.
